LoRa Gateway

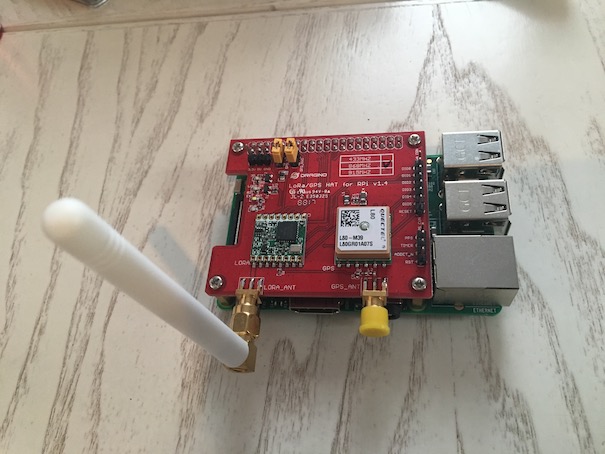

Single Channel LoRa gateway with a Raspberry Pi and a Dragino LoRa/GPS HAT - 868MHz

Hardware On Top

Yeah fun, I've got an old pi model b lying around but the hardware on top (hat) specification only came out in 2014 (B+ model with 40 GPIO pin layout). My 2012 model has a 26 pin layout so that won't fly. Buy a new one :(

Setting up the software

Instructions to build and connect are on The Things Network. Or do as the guy with the swiss accent (which is what we did).

Communication

This single channel gateway uses the single channel packet forwarder (single_chan_pkt_fwd) program running on the PI.

Basic communication protocol between Lora gateway and server: LoraWAN. Here is a list of IOT netwerk protocols.

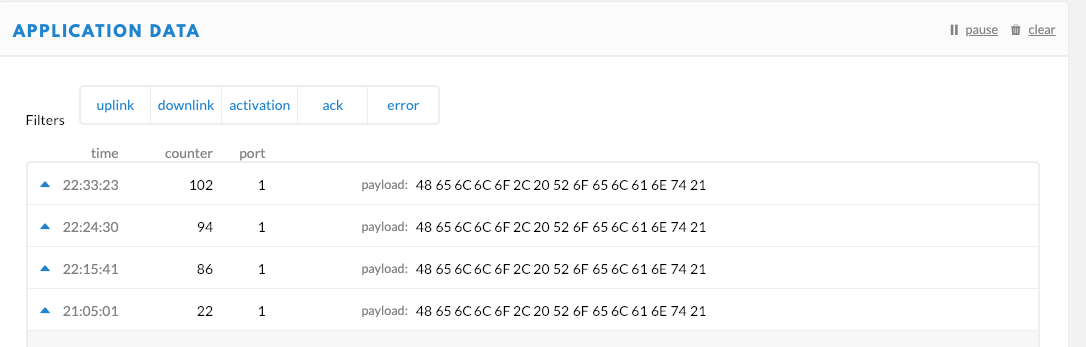

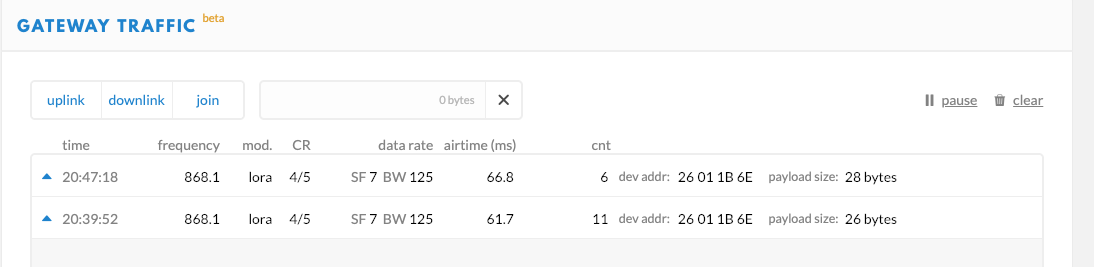

The Things results

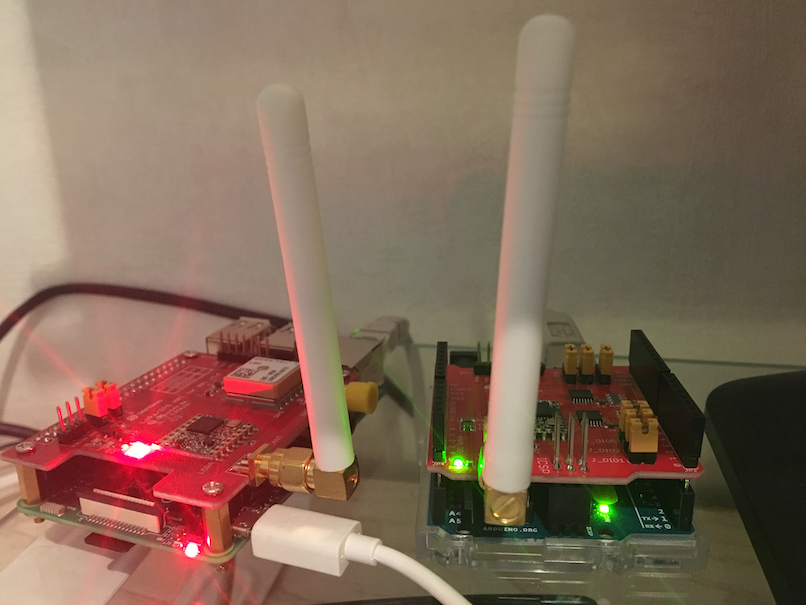

Node to Gateway...over

Close enough?
